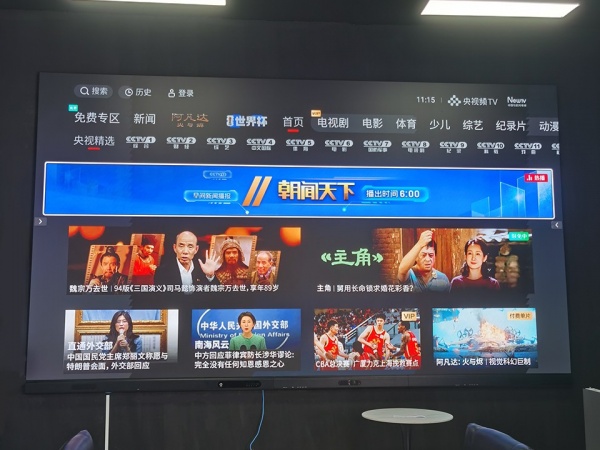

Cost-effective all-in-one display
| SMD 600*337.5mm 16:9 Ultra-thin Series |
| Type | P0.9375 | P1.25 | P1.5625 | P1.875 | P2.5 |
| Pitch | 0.9375 | 1.25 | 1.5625 | 1.875 | 2.5 |
| Series | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Cabinet Type | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Access / Maintenance | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance |
| LED Model & Type | Four in one | 1010 | 1212 | 1515 | 2020 |
| LED Make | MTC (兆驰) | Rayshine | Rayshine | Rayshine | Rayshine |
| Driving IC Model Make | FM6569 | FM6565 | FM6565 | FM6373 | FM6373 |
| Refresh | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits |
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° | H 140°, V 140° |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Power Supply & Model | 4.2V32A, XingXiu | 4.2V32A, XingXiu | 4.2V32A, XingXiu | 4.2V32A, XingXiu |
4.2V32A, XingXiu |
| Max Wattage (Watts) | 120 | 100 | 90 | 85 | 70 |
| Avg Wattage (Watts) | 72 | 60 | 55 | 50 | 42 |
| Power Supply per Cabinet | 1 | 1 | 1 | 1 | 1 |
| Reciever Card Per Cabinet | 1 | 1 | 1 | 1 | 1 |
Reciever Card Model
(Non HDR) | A8s Pro | A5s Plus | A5s Plus | A5s Plus | A5s Plus |
| Hub Card Per Cabinet(IF) | 1 | 1 | 1 | 1 | 1 |
| Circuit Design | Common Cathode Circuit | Common Anode Circuit | Common Anode Circuit | Common Anode Circuit | Common Anode Circuit |
| Scan | 46 | 45 | 48 | 45 | 30 |
| Density（dot/m²） | 1137777 | 640000 | 409600 | 284444 | 158814 |
| Module Pixels (L*H) | 320*180 | 240*135 | 192*108 | 160*90 | 120*67 |
| Module Size (L*H)mm | 300*168.75mm | 300*168.75mm | 300*168.75mm | 300*168.75mm | 300*168.75mm |
| Cabinet Resolution (dot) | 230400 | 129600 | 82944 | 57600 | 32160 |
| Cabinet Size (L*H)mm | 600*337.5mm | 600*337.5mm | 600*337.5mm | 600*337.5mm | 600*337.5mm |
| Cabinet Depth (mm) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Single Cabinet weight (kg) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 |
| Max Power (watts / m²) | 600 | 500 | 450 | 420 | 350 |
| Avg Power (watts/m²) | 360 | 300 | 270 | 250 | 210 |
| Weight (kg/m²) | 20 | 20 | 20 | 20 | 20 |
| Certification | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS |
| Ingress Protection (IP) | IP30 | IP30 | IP30 | IP30 | IP30 |
| Grayscale | 14bit | 14bit | 14bit | 14bit | 14bit |
(1)Core Technical Advantages
1.Integrated all-in-one design
Built-in driving power supply, receiving control system, audio amplifier and touch module. No extra controllers, speakers or external power supplies are required. Wiring is simple to achieve true plug-and-play.
2.High-definition fine-pitch display technology
Adopts fine-pitch LED modules to deliver delicate images with high grayscale. Flicker-free and no moiré patterns under camera shooting, presenting clear pictures at close viewing distance.
3.Accurate infrared multi-touch technology
Supports 20-point infrared touch with smooth writing without lag. Functions including annotation, drag and zoom are available. Ultra-low latency allows multiple people to operate simultaneously without interference.
4.Intelligent multi-system compatibility
Built-in Android system, compatible with Windows screen casting. Wireless WiFi, Bluetooth and screen mirroring for mobile phones & computers are supported. Videos, pictures and documents can be read directly via USB flash drive for easy content replacement.
5.Built-in stereo speakers & silent heat dissipation structure
High-power speakers are integrated inside without external audio equipment. Hollow air ducts on the back realize silent heat dissipation, so the screen will not overheat after long-time operation without extra cooling devices.
6.Low-energy stable protective circuit
Energy-saving constant-current driver chips reduce overall power consumption. Equipped with over-voltage, over-current and short-circuit protection, it works stably under wide voltage and drastic temperature changes.
7.Ultra-thin modular design for easy maintenance
Slim metal body supports both wall-mounted and floor-standing installation. Modular components enable separate replacement of faulty parts for simple maintenance and longer service life.
(2)Main Application Scenarios
1.Office & conference: Enterprise meeting rooms, exhibition negotiation areas, reception desks of office buildings2.Education & training: School classrooms, training institutions, lecture halls for multimedia teaching
2.Commercial retail: Shop windows of chain stores, real estate sales offices, product introduction screens in exhibition halls
3.Government & public services: Government service halls, community centers, information display in hospitals
4.Hotel & cultural tourism: Hotel lobbies, tourist service centers of scenic spots, welcome displays for clubs
