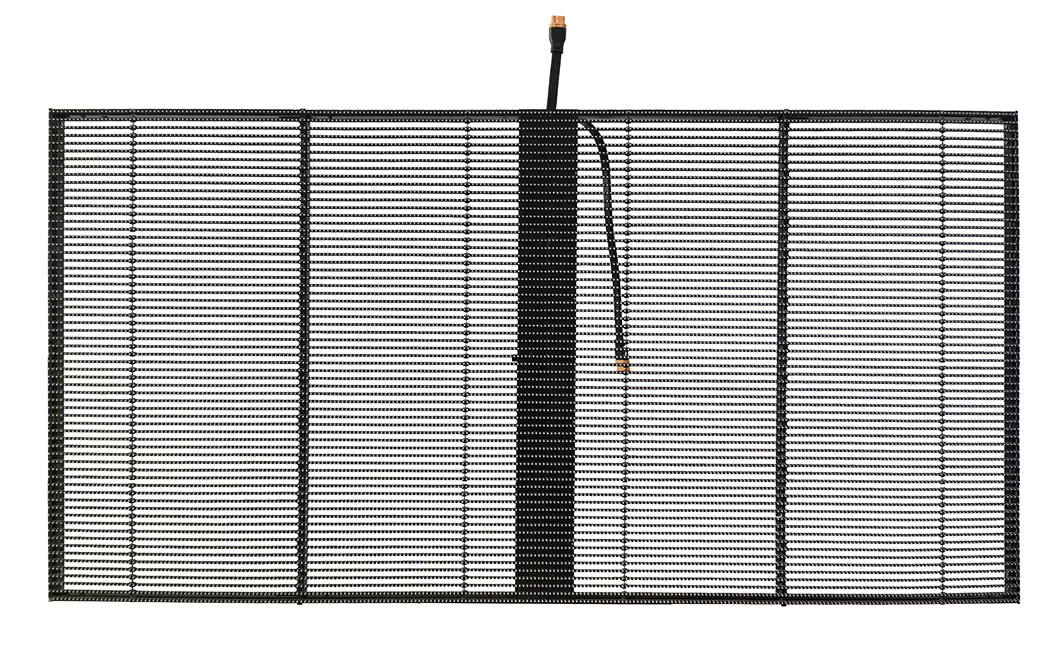

The P3.9-7.8 boasts the highest market circulation volume among LED transparent screens and remains the primary model stocked by leading manufacturers. Customized, non-standard models—such as P7.8, P10.4, and P15.625—are typically reserved for select large-scale projects only.
项目 Item | 规格参数 Specification Parameter |
模组点间距 Pixel Pitch | 单灯 3.91mm*灯条 7.82mm |
物理密度 Pixel Density | 32768 点/㎡ |
模块尺寸Module Dimensions | 500mm*125mm |
工作电压 Operating Voltage | 220V/50-60Hz |
平均功耗Avg. Power Consumption | 230W/㎡ |
***功耗Max. Power Consumption | ≤800W/㎡ |
控制方式 Control Method | 同步控制(诺瓦或其它)Synchronous Control (Nova or equivalent) |
保护技术 Protection Rating | IP43 |
***视距Optimal Viewing Distance | 5m 以上 |
箱体材质Cabinet Material | 铝型材+灯条Aluminum Alloy + Light Bars |
箱体净重Cabinet Net Weight | 7kg/m2 |
屏体通透率Screen Transparency | 65% |
驱动 ICDriver IC | SM16218N/MY9866 |
箱体尺寸Cabinet Dimensions | 1000mm*500mm*11mm,后背盒 65mm |
***视角Optimal Viewing Angle | 水平 140 度,垂直 120 度 Horizontal: 140°, Vertical: 120° |
白平衡亮度White Balance Brightness | ≥4000cd/㎡看具体光源配置 |
环境温度Ambient Temperature | 存贮 -40℃ ~ +85℃ , 工作 -20℃ ~ +60℃ |
相对湿度Relative Humidity | 10%~95% |
扫描方式Scan Mode | 1/7 扫,恒流驱动 Constant Current Drive |
刷新频率Refresh Rate | ≥3840HZ |
灰度Grayscale | 16bit |
拼装结构Assembly Structure | 吊装,立地安装,玻璃边框固定安装Splicing Structure |





Typically installed on the interior side of glass facades, LED transparent screens are designed for outdoor viewing, thus standard models are non-waterproof. Although waterproof options exist, they incur a substantially higher cost; the P3.9-7.8 remains the industry benchmark.
As one of the hottest products in recent years, transparent screens transform glass into dynamic media. They not only drive commercial revenue but also elevate a company's image with an aura of sophistication and technological innovation.
