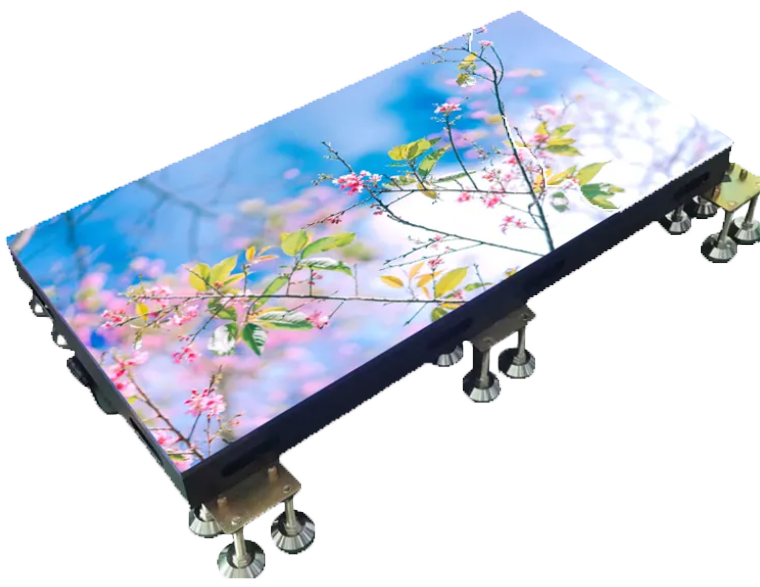

Radar Sensing Interactive LED Floor Tile Screen
LED floor tile screens are primarily installed on the ground, hence the name. To stand out, these screens typically feature interactive capabilities, with configurations tailored to specific application scenarios.
| LED Floor Screen Series |
| Pixel Pitch | Resolution
(dot/m²) | Pixel Density | Module size
mm | Cabinet size
mm | Refresh Rate | Scan | Lamp Bead | Brightness | IP Rate | Cabinet Bearing | Cabinet Thickness | Cabinet Weight | Working Voltage |
| P2.976 | 112896 | 336*168 | 250*250 | 1000*500 | 3840Hz | 1 / 42s | SMD1921 | 900-2000cd Adjustable | IP54 | 2000
KG/m² | 80mm | 22.5KG | 100-240V ，AC 50-60Hz |
| P3.91 | 65536 | 256*128 | 250*250 | 1000*500 | 3840Hz | 1 / 32s
or
1/16s | SMD1921 | IP54 | 2000
KG/m² | 80mm | 22.5KG |
| P4.81 | 43264 | 208*104 | 250*250 | 1000*500 | 3840Hz | 1 / 26s | SMD1921 | IP54 | 2000
KG/m² | 80mm | 22.5KG |
Main Application Scope
1.Commercial Complexes: Shopping mall atriums, brand retail stores, internet-famous walking paths, supermarket event exhibition areas
2.Cultural & Tourist Scenic Spots: Scenic interactive walkways, night light tourism projects, immersive ground light shows in ancient towns
3.Exhibition Halls & Museums: Interactive exhibition booths, dynamic ground displays for expos, digital experience zones in science museums
4.Entertainment Venues: Bars, KTVs, party houses, indoor amusement parks, dynamic floors for e-sports venues
5.Public Facilities: Museums, stadiums, convention centers, multimedia corridors in airports and high-speed railway stations
6.Wedding & Events: Dynamic floor screens for wedding banquet halls, interactive ground for temporary event stages
Product Advantages
1.High Load-bearing Performance: Cabinet bearing capacity ≥ 2 tons per square meter, supporting daily pedestrian walking and placement of small props.
2.IP54 High Protection Grade: Equipped with slip-resistant and wear-resistant acrylic cover plate, dustproof and splash-proof, suitable for both indoor and semi-outdoor use.
3.High Definition, High Refresh & Adjustable High Brightness: Refresh rate ≥ 3840Hz, brightness adjustable from 900 to 2000cd/㎡, flicker-free and clear visual effect.
4.Intelligent Human-machine Interaction: Built-in sensing chips trigger dynamic images and special interactive effects upon foot stepping.
5.Modular Fast Installation: Standard 500*1000mm modules for easy splicing, quick assembly and disassembly.
6.Ultra-flat Seamless Display: Surface flatness error less than 0.5mm, stable for walking with no dark gaps between panels.
7.Efficient Active Heat Dissipation: Built-in cooling system prevents overheating during long-hour continuous operation for stable long-term use.
8.Customized Adaptation: Exclusive functions and visual solutions can be customized according to site size and scenario requirements.
In tourist attractions, LED floor tiles can create thrilling visual effects—imagine the shock of walking on 'shattered glass'! In amusement parks, they offer playful interactions like 'stepping on fish.' Using radar sensors for motion detection, these screens respond instantly to human movement, turning any space into a lively and immersive experience.
