Outdoor LED Display Module

Outdoor LED Display Module

选择规格数量

P2.5-10

2.5-10mm

select Specifications



  • Product Detail

Technical Specifications and Product Images of Outdoor  LED Display Module with Standard Iron Cabinet.

SMD 960*960mm Outdoor Iron Cabinet Series
TypeP2.5P3.076P4P5P6.67P8P10
 Pitch 2.5mm3.076mm4mm5mm6.67mm8mm10mm
Series960*960mm Series960*960mm Series960*960mm Series960*960mm Series960*960mm Series960*960mm Series960*960mm Series
Cabinet TypeOutdoor Standard Waterproof CabinetOutdoor Standard Waterproof CabinetOutdoor Standard Waterproof CabinetOutdoor Standard Waterproof CabinetOutdoor Standard Waterproof CabinetOutdoor Standard Waterproof CabinetOutdoor Standard Waterproof Cabinet
Access / MaintenanceRear MaintenanceRear MaintenanceRear MaintenanceRear MaintenanceRear MaintenanceRear MaintenanceRear Maintenance
LED Model & Type1415141519211921272727273535
LED MakeRayshineRayshineRayshineRayshineRayshineRayshineRayshine
Driving IC Model MakeFM6373FM6373FM6373DP3364SDP3364SFM6373FM6373
 Refresh 3840Hz3840Hz3840Hz3840Hz3840Hz3840Hz3840Hz
Brightness4000-8000nits4000-8000nits4000-8000nits4000-8000nits4000-8000nits4000-8000nits4000-8000nits
Contrast5000:15000:15000:15000:15000:15000:15000:1
Viewing AngleH 140°,V 140°H 140°,V 140°H 140°,V 140°H 140°,V 140°H 140°,V 140°H 140°,V 140°H 140°,V 140°
Control SystemNovaStarNovaStarNovaStarNovaStarNovaStarNovaStarNovaStar
Power Supply & Model5V/60A, G_energy5V/60A, G_energy5V/60A, G_energy5V/60A, G_energy5V/60A, G_energy5V/60A, G_energy5V/60A, G_energy
Max Wattage (Watts)750750750750750750750
Avg Wattage (Watts)250250250250250250250
Power Supply per Cabinet3333333
Reciever Card Per Cabinet1111111
Reciever Card Model
(Non HDR)
MRV412-NMRV412-NMRV208-NMRV208-NMRV208-NMRV208-NMRV208-N
Hub Card Per Cabinet///////
Scan1613108642
Density(dot/m²)1600001056256250040000225001562510000
Module Pixels (L*H)128*64104*5280*4064*3248*2440*2032*16
Module Size (L*H)mm320*160mm320*160mm320*160mm320*160mm320*160mm320*160mm320*160mm
Cabinet Resolution (dot)14745697344576003686420736144009216
Cabinet Size (L*H)mm960*960mm960*960mm960*960mm960*960mm960*960mm960*960mm960*960mm
Cabinet Depth (mm)137137137137137137137
Single Cabinet weight (kg)45KG45KG45KG45KG45KG45KG45KG
Max Power (watts / m²)800800800800800800800
Avg Power (watts/m²)240240240240240240240
Single Cabinet weight (kg)45454545454545
Certification3C CE ROHS3C CE ROHS3C CE ROHS3C CE ROHS3C CE ROHS3C CE ROHS3C CE ROHS
Ingress Protection (IP)IP65IP65IP65IP65IP65IP65IP65
Grayscale14-16bit+14-16bit+14-16bit+14-16bit+14-16bit+14-16bit+14-16bit+

Core Advantages of Outdoor LED Modules

1.High Brightness Visibility

Brightness ranges from 4000 to 8000 cd/㎡. Images remain clear without fading under direct midday sunlight, delivering outstanding advertising performance.


2.All-Weather Waterproof & Dustproof Performance

Standard IP65 protection, optional GOB glue coating technology. Rainproof, dustproof, moisture-proof and UV-resistant, stable under high and low temperatures.


3.Ultra-Wide Viewing Angle

Wide horizontal and vertical viewing angles. Uniform color performance for viewers from far away or side views, no dark or distorted colors.


4.Energy Saving & Excellent Heat Dissipation

Optimized circuit and heat dissipation structure reduce power consumption, cutting long-term electricity operation costs.


5.Long Service Lifespan

LED chips offer a 100,000-hour rated lifespan. The whole screen is durable with low maintenance frequency.


6.Modular Splicing Structure

Uniform module size allows flexible splicing into any custom dimension. Only single faulty modules need replacement for easy maintenance without disassembling the whole screen.


7.Vivid Color Reproduction

High grayscale and high refresh rate ensure smooth, vibrant videos and pictures to attract more customers.


Practical Application Scenarios

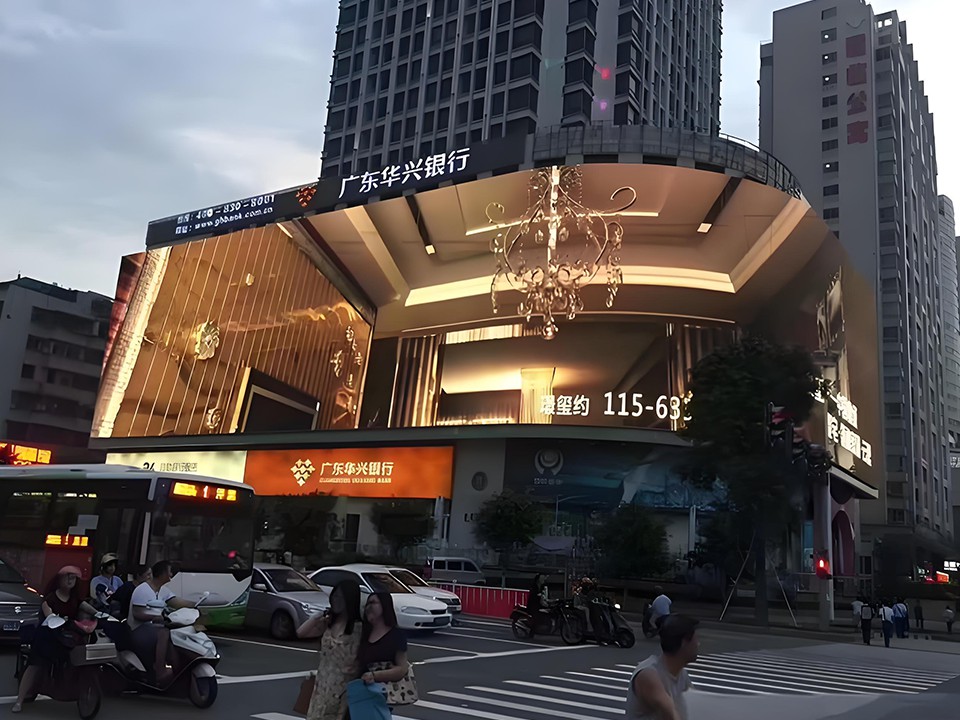

1.Commercial Facade Advertising: Large screens on shopping malls, hotels and office buildings for brand promotion.


2.Storefront Signage: Long outdoor screens for retail shops to broadcast discount campaigns.


3.Municipal Public Information: Public welfare notices, weather and traffic alerts on screens in urban squares and road overpasses.


4.Stadium Perimeter Screens: Ring-shaped outdoor displays around sports venues for live matches and commercial advertisements.


5.Transportation Hubs: Highway billboards, outdoor screens at bus stations, railway stations and airports.


6.Cultural & Tourist Attractions: Tour guide videos played on screens at scenic entrances and visitor centers.


7.Real Estate & Industrial Parks: Outdoor wall displays for property and corporate image promotion.


Outdoor LED display screens require cabinet assembly first, then all cabinets are spliced to form the complete screen. Wooden cases or wooden frames are adopted for packaging.


The display effect of fully assembled outdoor LED display follows this rule: the smaller the pixel pitch, the shorter the optimal viewing distance; the larger the screen area, the farther the effective viewing distance.
