Main Technical Specifications and Product Images of P1.25 LED Display Module – GOB Technology Available for All Our Modules.
| Indoor P1.25 Screen Module |
| Type | P1.25 |
| Pitch | 1.25 |
| Cabinet Type | Customized |
| Access / Maintenance | Front Maintenance |
| LED Model & Type | 1010 |
| LED Make | Rayshine |
| Driving IC Model Make | DP3364S |
| Refresh | 3840Hz |
| Brightness | 600-800nits |
| Contrast | 5000:1 |
| Viewing Angle | H 160°,V 160° |
| Control System | NovaStar |
| Power Supply & Model | 5V40A, G_energy |
| Power Supply Cover Module QTY | 6 |
| Reciever Card Cover Module QTY | 8 |
| Reciever Card Model (Non HDR) | MRV532 |
| Scan | 64 |
| Density（dot/m²） | 640000 |
| Module Pixels (L*H) | 256*128 |
| Module Size (L*H)mm | 320*160mm |
| Module Depth (mm) | 7mm |
| Max Power (watts / m²) | 520 |
| Avg Power (watts/m²) | 195 |
| Module Weight (kg/pcs) | 0.25kg |
| Certification | CCC CE ROHS |
| Ingress Protection (IP) | IP43 |
| Grayscale | ≥14bit |
LED Module Selling Points
- 1.Excellent protection performance
- Adopted GOB packaging, waterproof, dustproof, moisture-proof and anti-collision.
- Lamp beads are fully covered by glue to reduce dead pixels.
- 2.Superior display image quality
- High contrast, high refresh rate and high gray scale.
- Uniform color, delicate picture without grainy texture for close viewing.
- 3.Easy maintenance
- Front service or front & rear dual service available;
- single faulty pixel won’t affect other modules.
- 4.Lightweight & ultra-flat surface
- High flatness for seamless splicing;
- light weight reduces load bearing of steel structure.
- 5.Energy-saving & reliable heat dissipation
- Low power consumption with efficient cooling system,much more energy-efficient than LCD video walls.
- 6.Custom curved
- Modules and curved modules support creative irregular screen shapes.
- 7.Stable signal transmission
- Support breakpoint resume transmission to keep subsequent modules working normally after partial cable failure.
- 8.Full specifications & customizable.
- Complete range of indoor fine-pitch and outdoor modules; custom size, frame color available.
Water Spraying Test Rendering of GOB Modules
Application Scope
- 1.Government & security monitoring
- Command centers, traffic dispatching rooms, police monitoring walls for multi-channel split display.
- 2.Commercial display
- Reception desk LED screens, exhibition halls, meeting rooms, hotel ballrooms, shopping mall advertising walls.
- 3.Education & medical industry
- School lecture halls, hospital information display screens.
- 4.Cultural tourism & stage performance
- Curved screens, cylindrical screens, rental stage screens, scenic outdoor advertising.
- 5.Real estate & transportation
- Sales office sand table screens, airport, high-speed rail and subway information display.
- Renderings of P1.25 LED Display Project Cases

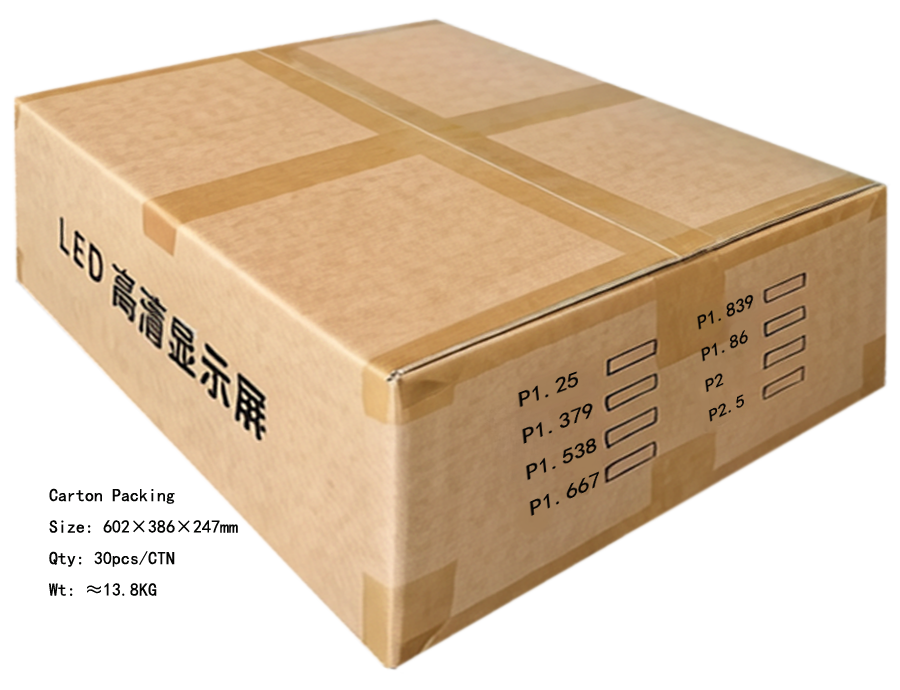

P1.25 LED display modules are normally packed in cartons. Neutral packaging will be adopted by default unless otherwise specified. Customized LOGO printing is available for bulk orders. The products have passed CE, CCC and RoHS certifications.The P1.25 LED display module is a premium fine-pitch solution, boasting a pixel density of 640,000 dots per square meter. It supports seamless splicing into large screens and is compatible with cabinet assembly. Typically, these modules are packaged in cartons.
